iSBC Session Border Controller
iSBC（Session Border Controller）Provide rich services such as security, access, interconnection, routing/policy management, signaling flow control, QoS and media processing for the SIP networks of large, medium and small enterprises.
Product Overview
With the continuous development of communication network convergence, application scenarios such as IP-based voice, video, conferences, and converged communications in modern enterprises have become essential for daily work.
The iSBC provides rich services such as security, access, interconnection, routing/policy management, signaling flow control, QoS, and media processing for the SIP networks of large, medium, and small enterprises. The device adopts a multi-core processor, non-blocking Gigabit switching network, 10 Gigabit switching network, and Linux operating system. While achieving high performance, it also supports dual hot-swappable power supplies and has carrier-grade high reliability. The device supports 5000 concurrent sessions and 1500 channels of voice media transcoding processing, and also supports SIP over TLS and SRTP encrypted sessions, which is safe and reliable.

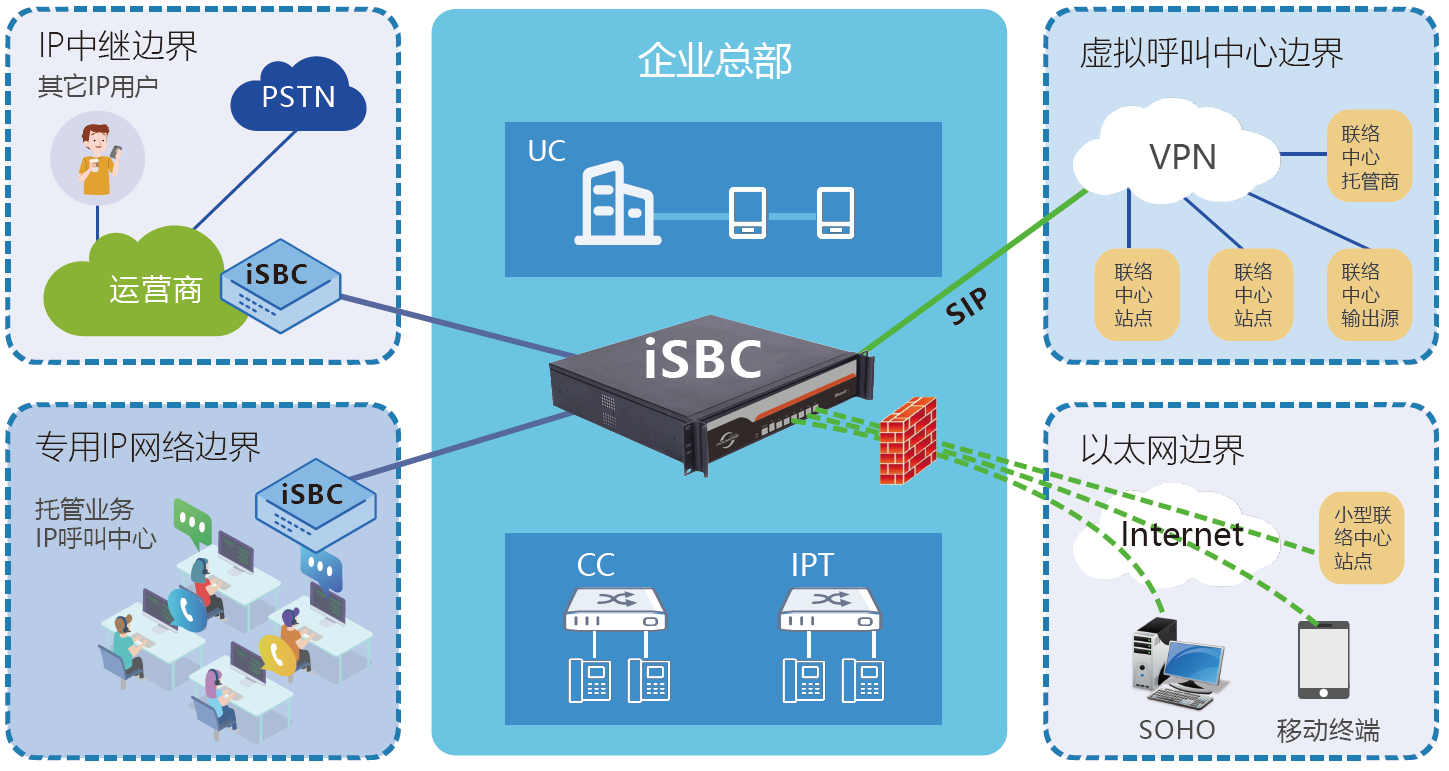

Product Architecture
product series
Standard Edition

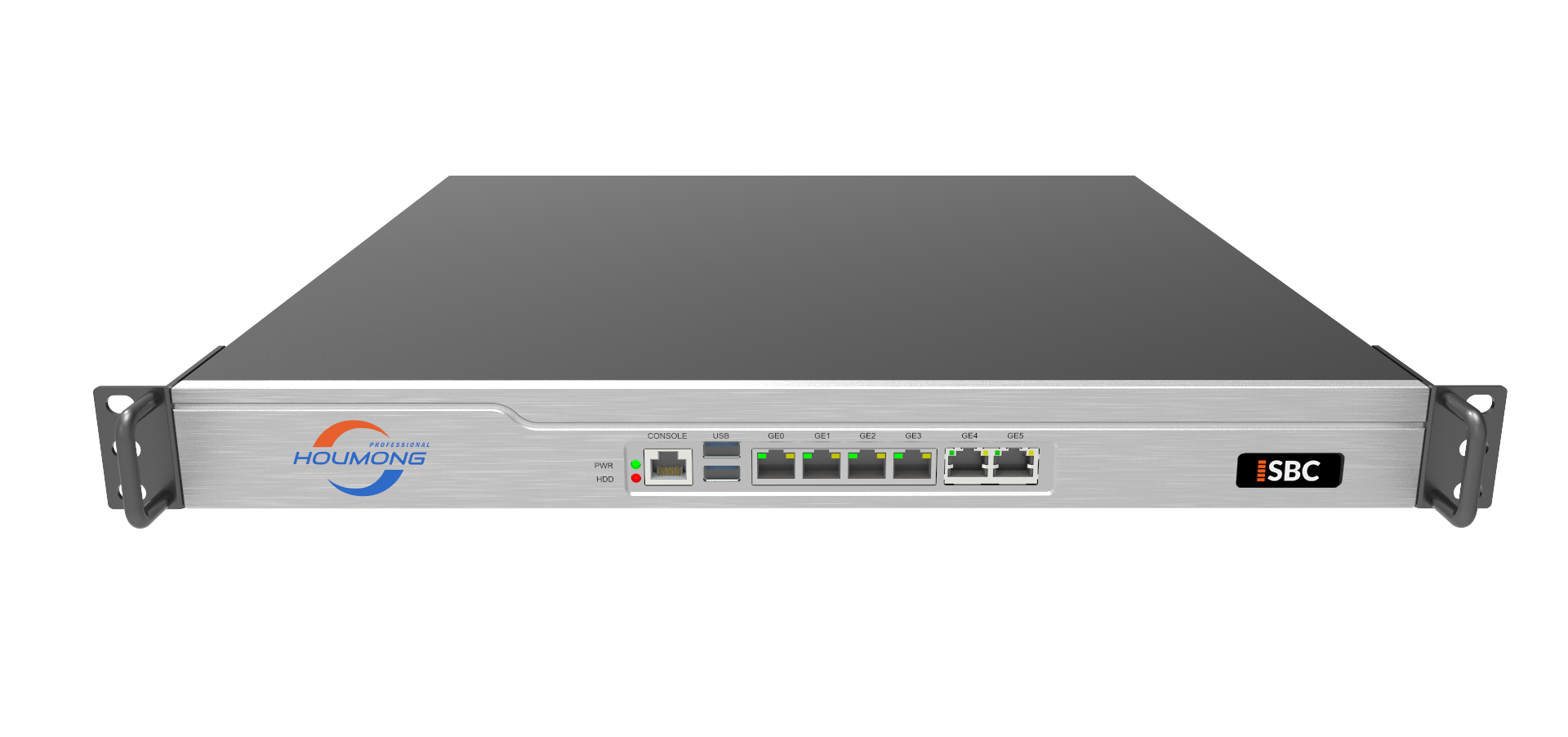

- 1U standard chassis.
- Support registration of 2000 SIP users.
- Support more than 600 channels of media forwarding, with a maximum of 200 channels/s of media forwarding.
- Support for media encryption.
- Support 1024 channels of media and fax transcoding.
- Support multiple softswitches and prevent softswitches from being blocked and hide topology.
- Flexible routing rule configuration, support regular expressions, and support blacklists and whitelists.
Enterprise Edition

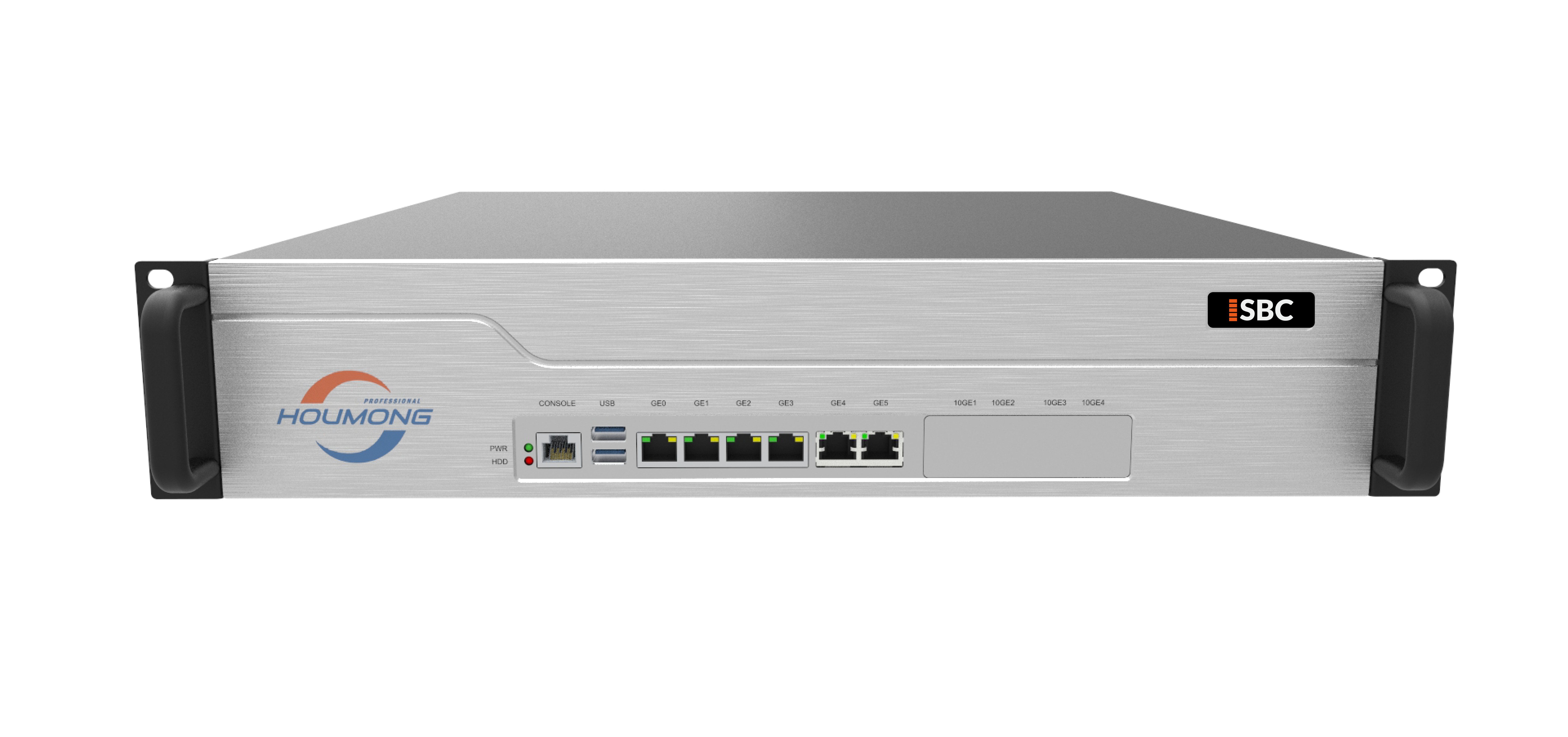

- 2U standard server.
- Support registration of 10000 SIP users.
- Support more than 1000 channels of media forwarding, with a maximum of 200 channels/s of media forwarding.
- Support media encryption.
- Support 1024 channels of media and fax transcoding.
- Support multiple softswitches and prevent softswitches from being blocked and hide topology.
- Flexible routing rule configuration, support regular expressions, and support blacklists and whitelists.
Virtualization Edition
- Virtual machine deployment.
- Support registration of more than 10000 SIP users.
- Support more than 5000 channels of media forwarding, with a maximum of 200 channels/s of media forwarding.
- Support media encryption.
- Support 1024 channels of media and fax transcoding.
- Support multiple softswitches and prevent softswitches from being blocked and hide topology.
- Flexible routing rule configuration, support regular expressions, and support blacklists and whitelists.
Voice characteristics
- Voice coding：G.711a/μ，G.723，G.729A/B，iLBC，G.726， AMR，OPUS
- Silence suppression.
- Comfort noise generation (CNG).
- Voice activity detection (VAD).
- Echo cancellation (G.168), up to 128ms.
- RTP/RTCP.
- Voice interruption protection.
- Adaptive dynamic buffering.
- Adjustable gain control.
- Automatic gain control.
- Fax: T.38 and Pass-through.
- DTMF mode: RFC2833/Signal/Inband
Call processing
- Flexible routing rules.
- Redundant routing backup/selection.
- Control call routing by time period.
- Route by caller/called number prefix.
- Route by SIP URL domain matching.
- Route by SIP request method matching.
- Caller and callee number transformation.
- IP trunk redundancy and load balancing.
- Digital regular expressions.
Call processing
- Flexible routing rules.
- Redundant routing backup/selection.
- Control call routing by time period.
- Route by caller/called number prefix.
- Route by SIP URL domain matching.
- Route by SIP request method matching.
- Caller and callee number transformation.
- IP trunk redundancy and load balancing.
- Digital regular expressions.
